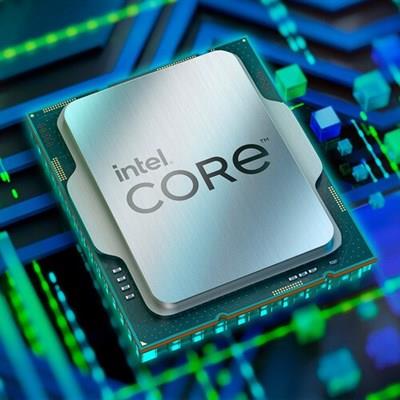

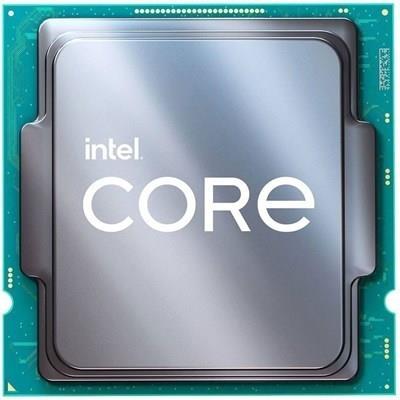

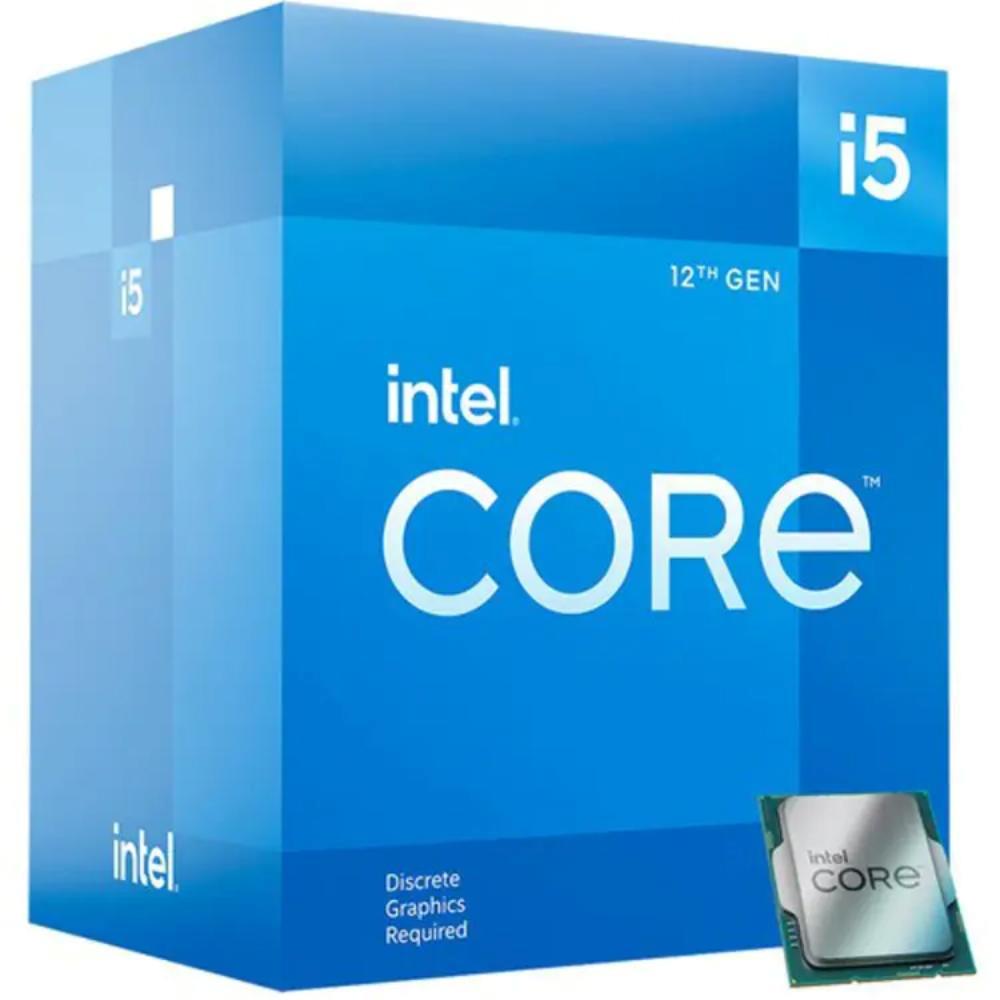

Intel Core i5-12400F 12th Generation Processor

Total Cores: 6
Total Threads: 12
Turbo Frequency: 4.40 GHz
18 MB Intel® Smart Cache

Product Code: BX8071512400F

Brand: Intel

Warranty: 10 Months

Availability: In Stock

Rs. 36,200

Add To Compare

Add to cart

Buy now

Add to Wishlist

Overview
Specifications

CPU Specifications

# of Performance-cores6
# of Efficient-cores0
Total Threads12
Max Turbo Frequency4.40 GHz
Performance-core Max Turbo Frequency4.40 GHz
Performance-core Base Frequency2.50 GHz
Cache18 MB Intel® Smart Cache
Total L2 Cache7.5 MB
Processor Base Power65 W
Maximum Turbo Power117 W

Supplemental Information

Marketing StatusLaunched
Launch DateQ1'22
Embedded Options AvailableNo
Use ConditionsPC/Client/Tablet
DatasheetView now

Memory Specifications

Max Memory Size (dependent on memory type)128 GB
Memory TypesUp to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels2
Max Memory Bandwidth76.8 GB/s

Expansion Options

Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision5.0 and 4.0
PCI Express Configurations ‡Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes20

Package Specifications

Sockets SupportedFCLGA1700
Max CPU Configuration1
Thermal Solution SpecificationPCG 2020C
TJUNCTION100°C
Package Size45.0 mm x 37.5 mm
Max Operating Temperature100 °C

Advanced Technologies

Intel® Gaussian & Neural Accelerator3.0
Intel® Thread DirectorNo
Intel® Deep Learning Boost (Intel® DL Boost) on CPUYes
Intel® Optane™ Memory Supported ‡Yes
Intel® Speed Shift TechnologyYes
Intel® Turbo Boost Max Technology 3.0 ‡No
Intel® Turbo Boost Technology ‡2.0
Intel® Hyper-Threading Technology ‡Yes
Intel® 64 ‡Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle StatesYes
Enhanced Intel SpeedStep® TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® Volume Management Device (VMD)Yes

Security & Reliability

Intel® Standard Manageability (ISM) ‡Yes
Intel® Control-Flow Enforcement TechnologyYes
Intel® AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Execute Disable Bit ‡Yes
Intel® Boot GuardYes
Mode-based Execute Control (MBEC)Yes
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® VT-x with Extended Page Tables (EPT) ‡Yes
